FANUC

Automate Your Way to Success

Whatever your need, whatever your material, industry or market, FANUC has the right product for you. FANUC guarantees superior machining performance, reliability and support leading to continued, improved productivity for our customers.

ROBOMACHINE

ROBOMACHINE include
ROBODRILL (Compact Vertical Machining center),
ROBOSHOT (All Electric Injection Moulding Machine)
and ROBOCUT (CNC Wire EDM).

ROBODRILL

α-DiBADV Plus series

High reliability and high performance compact machining center

Additional Features over Standard Machine

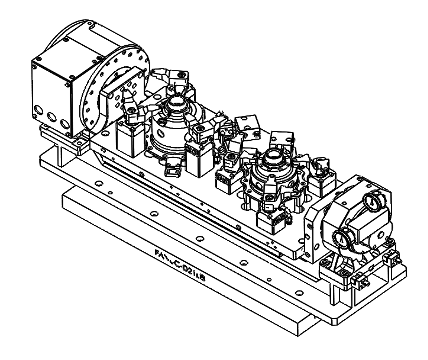

400 Kg – Pay Load

Advanced machine provides freedom to work with 400 kg payload on table. This can replace the requirement of larger machines.

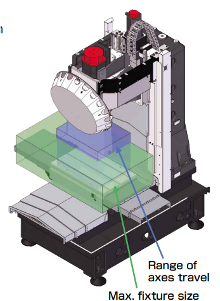

Enhanced Work Envelope

With the help of 400 mm column-riser and 400 mm Z-Axis Stroke, daylight(D/L) of advanced machine can be enhanced to 880 mm. Larger components can be machined.

Lightening Fast Tool Change

Servo operated turret supports faster tool-to-tool change time of 0.7 seconds and cut-to-cut time of 1.3* seconds.

*(2 kg Tool setting)

Excellent Chip Management by Design

Full-metal Z-Axis telescopic cover helps higher durability. Additional slope in Y-Axis telescope improves coolant flow and chip evacuation. 3 piece X-Axis telescopic cover helps free flow of chips and improves mechanical life.

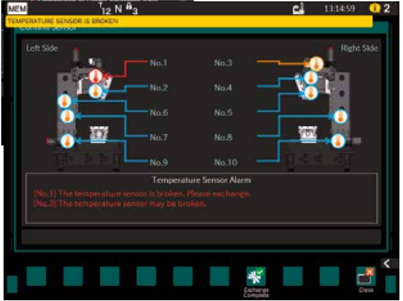

Artificial Intelligence Thermal Displacement Compensation – II (With Sensors)

Option in Standard & Advanced: Artificial Intelligence Thermal Displacement Control-II enables real time temperature monitoring using the sensors built around the column. AI of ROBODRILL ensures highly precise compensation on real time.

Faster Cycle time

With 50 years of machine building experience FANUC ROBODRILL achieves flawless 54m/min rapid cycle time in all axes with zero compromise on reliability of the machine and quality of the machining.

Tapping Spindle – Upto 48 Tappings in a Minute

  • With higher acceleration of 0.12Secs , Tapping spindle does 48 Tapping in a single minute against 24 Tapping per minute in previous models.
  • EV Components, 5G Components are having 40+ Tapping in an average. This higher duty cycle spindle supports to complete the components in faster cycle times.

*Option available in both Plus and Advance Plus Machines.

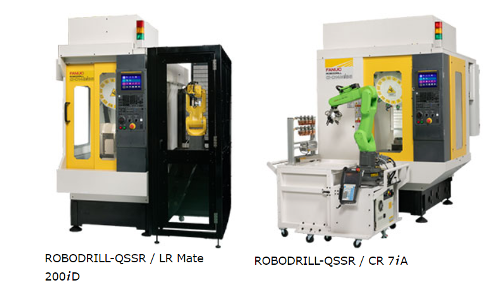

QSSR – Quick & Simple Startup of Robotization For ROBODRILL

ROBODRILL can be easily interfaced to ROBOT for unmanned operations. FANUC ROBOTS provide a simple and ready-made solution – Quick & Simple Startup of Robotization (QSSR).

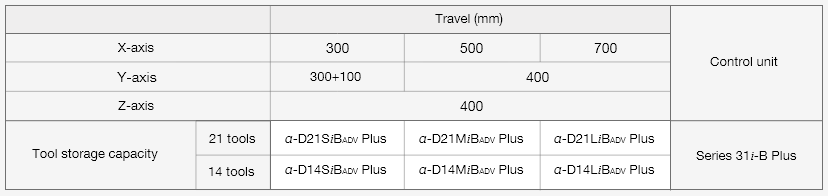

Specifications

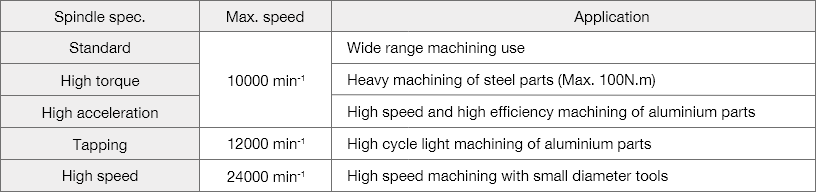

Spindle Options
