100iD Series

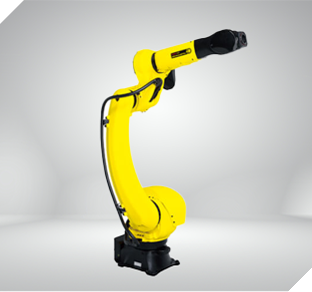

ARC Mate 100iD

Axes

6

Payload

12 Kg

Reach

1441 mm

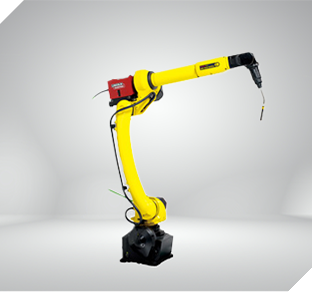

ARC Mate 100iD/8L

Axes

6

Payload

8 Kg

Reach

2032 mm

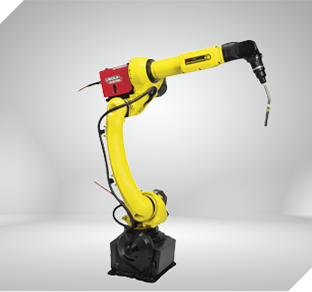

ARC Mate 100iD/10L

Axes

6

Payload

10 Kg

Reach

1636 mm

120iD Series

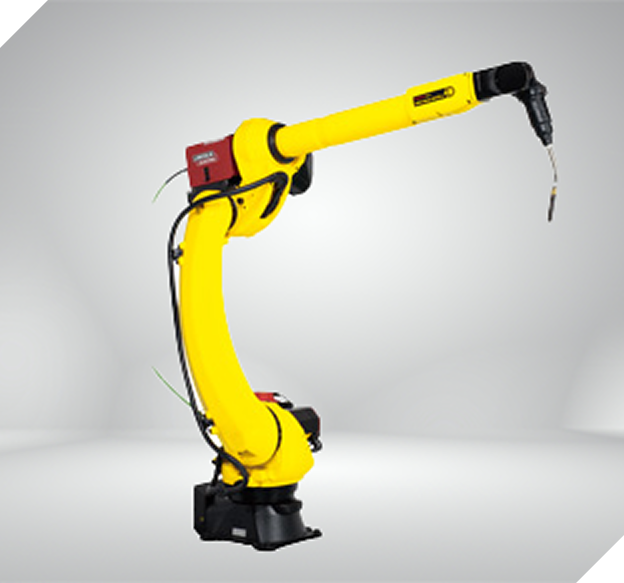

ARC Mate 120iD

Axes

6

Payload

25 Kg

Reach

1831 mm

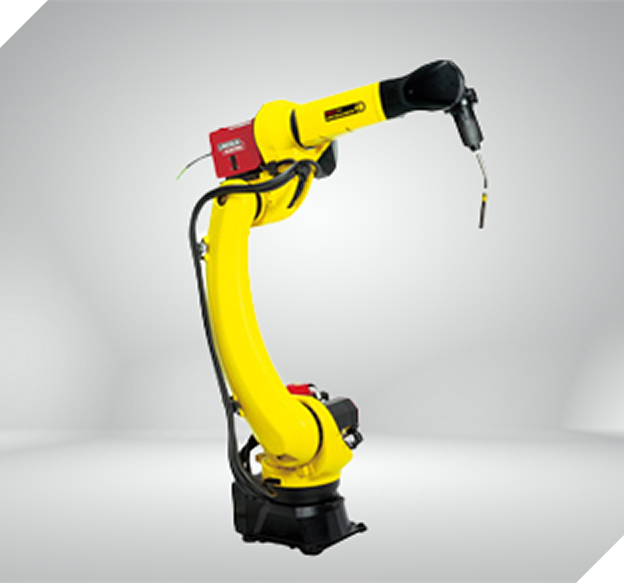

ARC Mate 120iD/12L

Axes

6

Payload

12 Kg

Reach

2272 mm

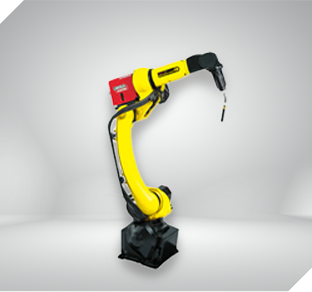

ARC Mate 120iD/35

Axes

6

Payload

35 Kg

Reach

1831 mm

Key Features

Payload/Reach

Extensive product range including high payload and long reach robots suitable for a wide range of industrial arc welding applications.

Compact

The slim wrist and arm design makes the m ideal for narrow spaces.

Hollow Wrist

The compact hollow wrist for torch cable integration cuts costs by minimizing wear and tear on welding cables.

Easy Integration

Quick setup time and easy to dress with welding power source kits for seamlessly integrated welding robot.

Flexible

Floor-, wall-, ceiling- or angle-mounted possibility with no motion restrictions permits the robots to easily fit any work cells.

Fast

A rigid arm with advanced servo technology enable maximum speed and acceleration performance.
