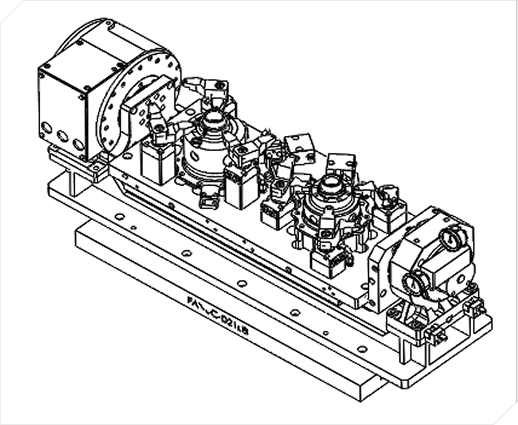

Advanced machine with 400 kg payload on table. This can replace the requirement of larger machines.
.png)

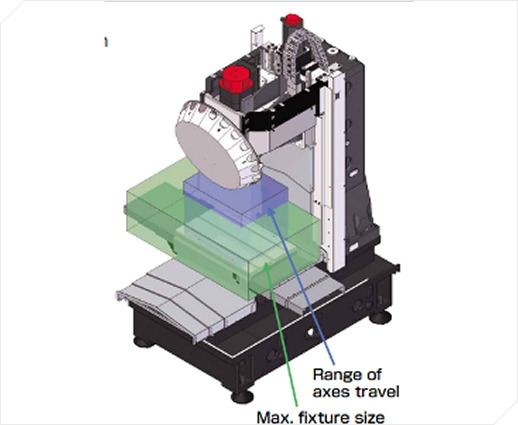

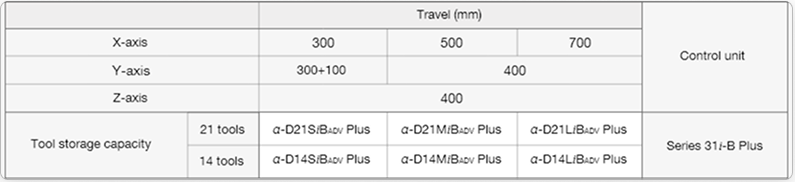

With the help of 400 mm column-riser and 400 mm Z-Axis Stroke, daylight(D/L) of advanced machine can be enhanced to 880 mm. Larger components can be machined.
Servo operated turret supports faster tool-to-tool change time of 0.7 seconds and cut-to-cut time of 1.3* seconds. *(2 kg Tool setting)
.png)

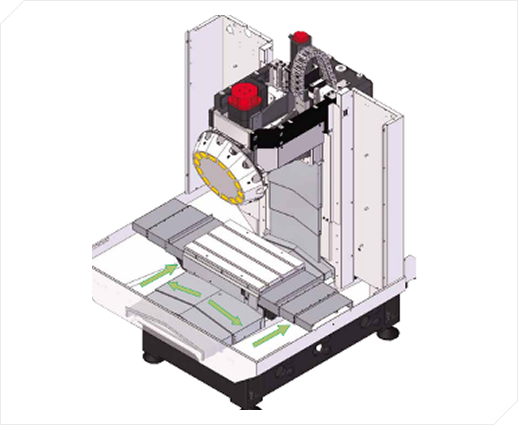

Full-metal Z-Axis telescopic cover helps higher durability. Additional slope in Y-Axis telescope improves coolant flow and chip evacuation. 3 piece X-Axis telescopic cover helps free flow of chips and improves mechanical life.
.png)

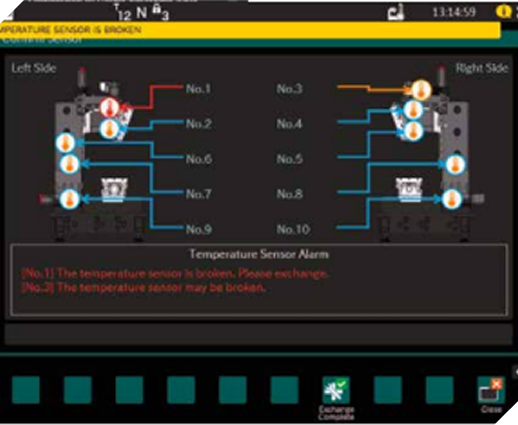

Option in Standard & Advanced: Artificial Intelligence Thermal Displacement Control-II enables real time temperature monitoring using the sensors built around.
With 50 years of machine building experience FANUC ROBODRILL achieves flawless 54m/min rapid cycle time in all axes with zero compromise on reliability of the machine and quality of the machining.
.png)
.png)
.png)

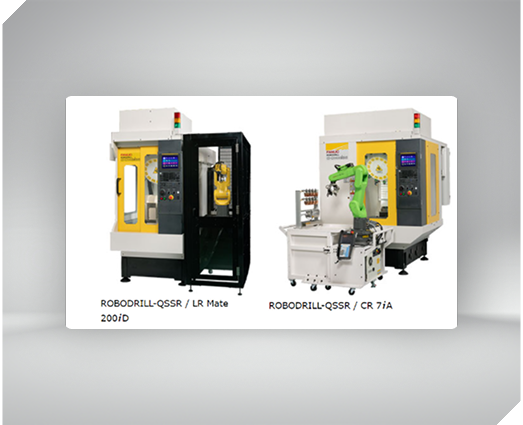

ROBODRILL can be easily interfaced to ROBOT for unmanned operations. FANUC ROBOTS provide a simple and ready-made solution – Quick & Simple Startup of Robotization (QSSR).
